Horizontal Pressure Leaf Filter is intended for purification of edible and technical plant oils on different production stages (primary purification, winterization). Horizontal Pressure Leaf Filter can be used for purification of other similar carbon steel friendly liquids.

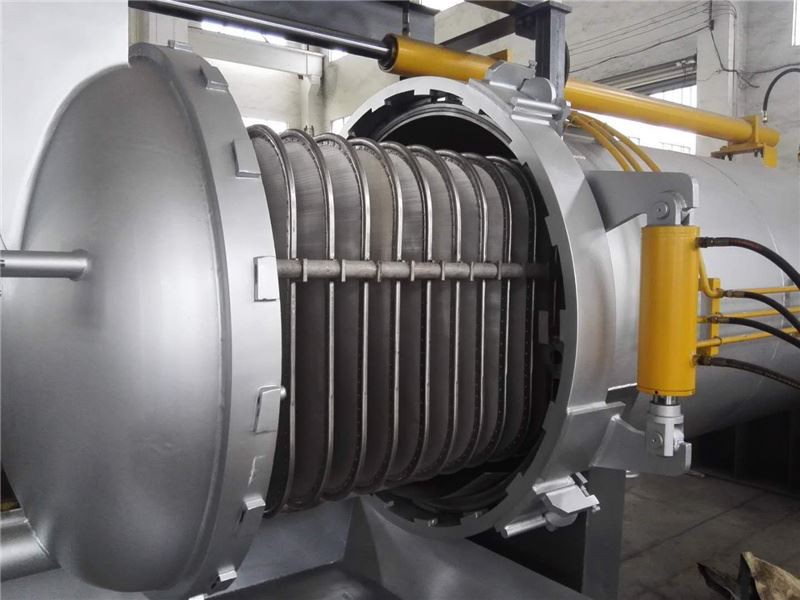

Horizontal Pressure Leaf Filter consists of the horizontal tank with a removable cover. For sealing of the framing joint and the cover a spacer is used, which is tightened by turning of a bayonet-type ring by means of two hydrocylinders of the valve. Taking of the cover is performed by means of the hydrocylinder also.

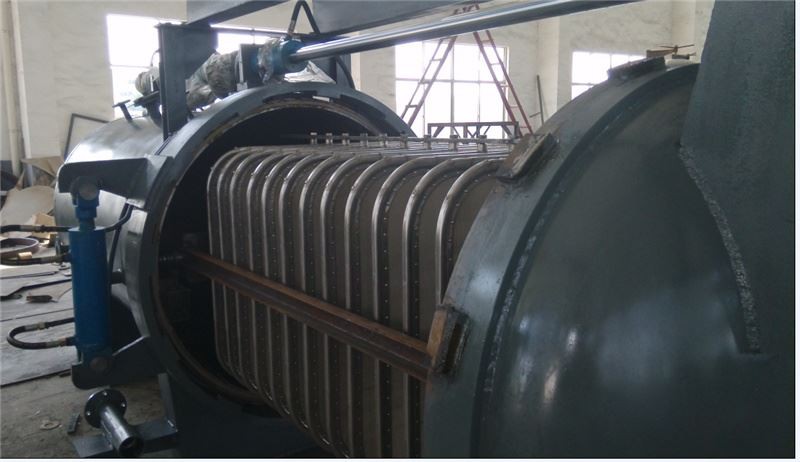

Horizontal Pressure Leaf Filter elements are removable vertical leafs tied up on the top by means of a bundle retainer. At the bottom the filter leafs are furnished with connections meant for taking of the filtrate into the gathering main and then to the pipe-line.

For visual control of the flow and of the filter purity, Horizontal Pressure Leaf Filter is furnished with observational lanterns mounted on supply and lateral pipe-lines.

Advantages

	1、Proven technology. 2、Fully automatic to ensure safety. 3、Small footprint to maximize space. 4、Easy access to filter leaves to remove filter cake. 5、Full automation means limited maintenance and reduced operating costs. 6、Enclosed filtration system for complete safety in use. 7、Short regeneration time between filter cycles reduces operating costs as the filter can filter for longer periods without interruption. 8、Easy-to-clean pressure filter blades. 9、No rotating parts, minimizing maintenance. 10、Reinforced pressure filter blades for extended service life. 11、Specially designed self-sealing cover gasket for a perfect sealing solution and maximum safety.
