Flat wire conveyor belt,constructed of cross rods and flat metal strips,are made out of thousands of metal "U" shapes that are riveted together.They are best for situations that require a solid,flat surface that promotes maximum air circulation. Excellent fluid drainage as well as ease of cleaning.Meanwhile,they are easy to maintain just replacing the section that is damaged or worn down.
They are used in some of the following applications:food processing,canning,baking,freezing,agricultural applications,as well as Parts washing,drying,cleaning,painting,transferring;also used as matting and drag mats.
Details
Material:high carbon steel,low carbon galvanized steel,stainless steel 201,304,316,etc.
Open size:1"×1",1/2"×1",1/2"×1/2".
Belt width:50mm to 3500mm.
Belt speed:from less than 1 m/min to 25 m/min.
Temperature range:-30°C to 400°C.
Accessories:flight clips,lane dividers,edge guards or pin up attachments,etc.
-
![Flat wire belt/Honeycomb belt]()
Flat wire belt/Honeycomb beltThe most open metal belt that does not compromise belt strength. flat wire belt with big open engineered using the Connect Splice Rod for easy replacement of sections and simple retrofitting without -
![Stainless steel eye link belt]()
Stainless steel eye link beltFlat wire belt-durable edge: Patent pending 'EDGE' technology for ultimate strength and durability.. Stronger and more advanced than its predecessor, flat wire belt-durable edge is set to help reduce -
![Flat Wire Belts]()
Flat Wire Beltsflat wire mesh belt , honeycomb belt , flat wire conveyor belt Flat wire belts, also known as flat wire belting. It is made of flat wire and rod, and the often specifications have 1*1,1*1/2,1/2*1/2,
raw materials
Choose materials according to your needs

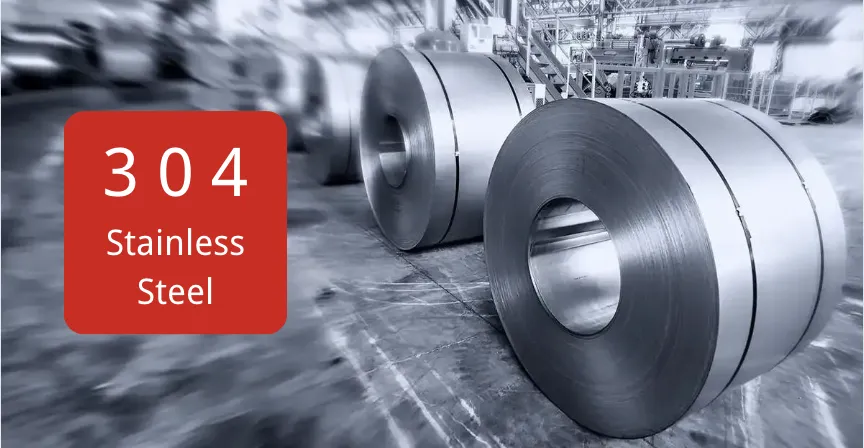

Stainless Steel 304
It is an austenitic stainless steel and therefore not magnetic. It has lower electrical and thermal conductivity than carbon steel. It has higher corrosion resistance than ordinary steel .
Stainless Steel 316
Sometimes called A4 stainless steel or marine grade stainless steel, it is the second most common austenitic stainless steel after 304/A2 stainless steel.
How do I choose between 304 and 316 stainless steel ?
When choosing between 304 and 316 stainless steel, consider the application's requirements for cost, mechanical strength, and oxidation resistance. 316 is more expensive and better for harsh environments that demand superior corrosion resistance. 304 is more affordable and versatile, and may be suitable for applications that don't need high corrosion resistance.
Corrosion resistance: 316 is more resistant to salt, chlorides, and other corrosives, making it the better choice for marine environments or exposure to chemicals. 304 is less resistant to chlorides but still extremely resistant to corrosion in general.
Cost: 316 is more expensive due to its higher nickel content and molybdenum. 304 is the more economical choice.
Cleaning: 316's increased resistance allows for more frequent cleaning with stronger detergents and cleansers without damaging or altering the stainless steel's appearance.
Machining: 304 is easier to machine and shape, and comes in many finishes. 316 requires the right tools to machine well.
Strength: 304 has a higher yield strength than 316, which is important for high tolerance machining.
Weldability: 316 has slightly better weldability due to its lower carbon percentage.
Temperature: 316 performs slightly better at high temperatures.
Appearance: The two are indistinguishable in appearance.
Product Application
Wide range of applications
Various food production lines, metal conveyor belts to avoid stains and prevent rusting
Flexible metal mesh belts to prevent glass breakage during the transfer process
Heat treatment mesh belt, high temperature resistant
Prevent corrosion and contamination with metal mesh belts
About us
Professional factory, supplier
Yangzhou Leneng Machinery Co., Ltd.
Founded in 1995, specializes in the production of metal conveyor belts,mesh belt conveyors,Oil Industry Leaf Filter,Filter Element and other equipment. Its products are widely used in food processing, meat processing, fish processing, and chemical engineering. Oil, drink beer, dairy products and other production lines, and electronics, mechanical assembly, pharmaceutical chemicals, packaging, and other fields.
production worker
years experience
Factory area
Average annual GDP（$）
Our Equipment
Professional and complete equipment to meet your needs.
Bending machines
Riveting machines
Spring machines
Punching machines
Wire Cutting Machines
Welding machines
quality control
our quality control
Product quality first.
1. Raw material inspection:
Incoming QC spectral analyzer to check the chemical composition, hardness tester to check the hardness of raw materials, caliper to check the wire diameter.
2, Production process inspection:
Quality control for each production process to ensure the pass rate. Engineering QC every 4 hours for factory inspection.
3、Factory inspection of finished products:
We carry out 100% inspection, qualified products are stamped with QA PASS seal, and adopt special export wooden box to ensure the products leave the factory intact.
4、QC supervisor supervises the whole process:
Only when the customer confirms that there is no problem with the product, his work will be considered finished.
cooperative partner
Our Partners
Yangzhou leneng produces products with good reputation, has many partners around the world, and has won the trust of customers, we firmly believe that we can have a better cooperation with you!
Experienced logistics
FAQ
Everything You Need to Know
These questions should address some of your concerns
Q: Are you a trader or a factory?
A:Factory
We are located in Jiangsu Province, China, Yangzhou City, Bridge Town, if come to you come to China, you can visit, but also through the video, I take you to visit!
Q：How long will my belt last?
A：normal 2-3 years
The lifespan of your metal mesh belt depends on several factors, including:
Material: Stainless steel belts generally last longer than other materials.
Usage: Heavy or continuous use can shorten the belt's lifespan.
Maintenance: Regular cleaning and proper maintenance can extend the life of the belt.
Environment: Exposure to harsh chemicals or extreme temperatures can reduce durability.
If you take good care of it, you can use it for many more years.
Q: What widths are available for Wire Belts?
A: 200-3500mm width
Q: Are there advantages of wire mesh over plastic belts?
A: 1: Run stable , 2:no Noise
Q: Are your belts and components suitable for food contact ？
A: Yes it can touch directly
Q: How fast can I run my belt?
A: 2-40m/min
Q: How much tension should be applied to the belt?
A：800-1200 tension
Q：Can you provide a complete conveyor?
A：Yes we can metal belt and all kinds of belt conveyor.
Q：If I come to you for customization, what information materials do I need to provide?
A：For customization, please provide the following information:
Belt Specifications: Desired material, width, length, and mesh type.
Application Details: The type of products being conveyed and the operating environment (e.g., temperature, chemicals).
Speed Requirements: The required speed or any specific operational constraints.
Load Capacity: The weight and volume of items to be conveyed.
Installation Space: Dimensions and layout of the installation area.
Special Features: Any additional requirements such as edge treatments, surface finishes, or specific attachments.
Providing these details will help us design a belt that meets your exact needs.
Q：What is your typical production lead time?
A：Normally lead time :7-15 days
Q：How much time does it usually take to ship internationally?
A：10-20days
Q：What payment options are available?
A：30% deposit , the balance paid before shipment
Pay by TT or LC
Q：I don't know how to install the product, how can I solve this problem?
A：Send video how to install.
Q: How do you guarantee after-sales service after we purchase the product?
A: We can offer after-sales service online .
Q: How to get in touch with you quickly？
A: same@cnlnjx.com Whatsapp(wehcat ):00861595254
Contact product manager to help you!!
As one of the most professional flat wire belt manufacturers and suppliers in China for over 25 years, we're featured by quality products and good price. Please rest assured to wholesale flat wire belt for sale here from our factory.
